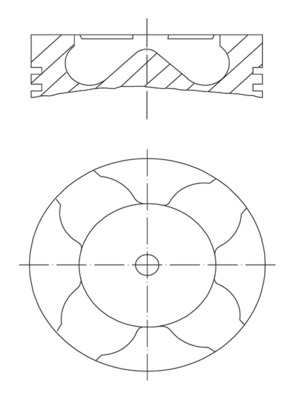

Piston
Mahle - Piston
Do you have questions about our products or would you like to place an order? Then click on the button to the right and ask your question to one of our Product Specialists, they will be happy to help you!
Specs
Criteria
| Bolt Length [mm] | 68.0000 |
|---|---|
| Compression Height [mm] | 45.8000 |
| Length [mm] | 70.8000 |
| Recess Depth 1 [mm] | 14.9000 |
| Surface | Coated |
| Cylinder Bore [mm] | 84.5000 |
| Supplementary Article/Supplementary Info | with piston rings |
| Bolt Head Diameter [mm] | 29.0000 |
| Supplementary Article/Info 2 | with piston ring carrier without cooling duct |
| Component Number | 3. DSF 3,0 Cr 2. M 1,75 1. R 2,0 CrK 2. M 1.75 3. DSF 3.0 Cr 1. R 2.0 CrK |
| Recess Diameter [mm] | 41.0000 |
| Valve Pocket Depth 1 [mm] | 1.0000 |
| Machined | with cut-out for oil jet |
General
| Article number | WG1104243 |
|---|---|
| Brand | Mahle |
| External article number | 012 07 01 |
| EAN | 4009026534465 |
